JABLOTRON 100+ NATUS JA-156E-AN – 5-inch wireless touch keypad with RFID reader in anthracite

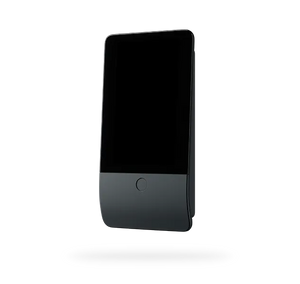

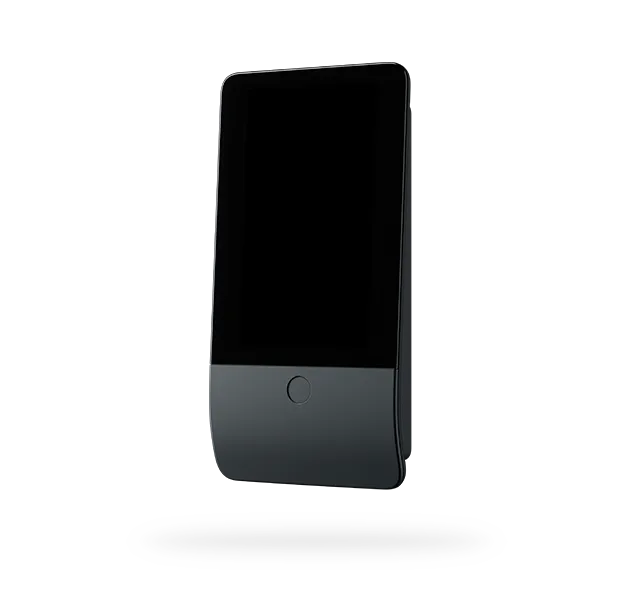

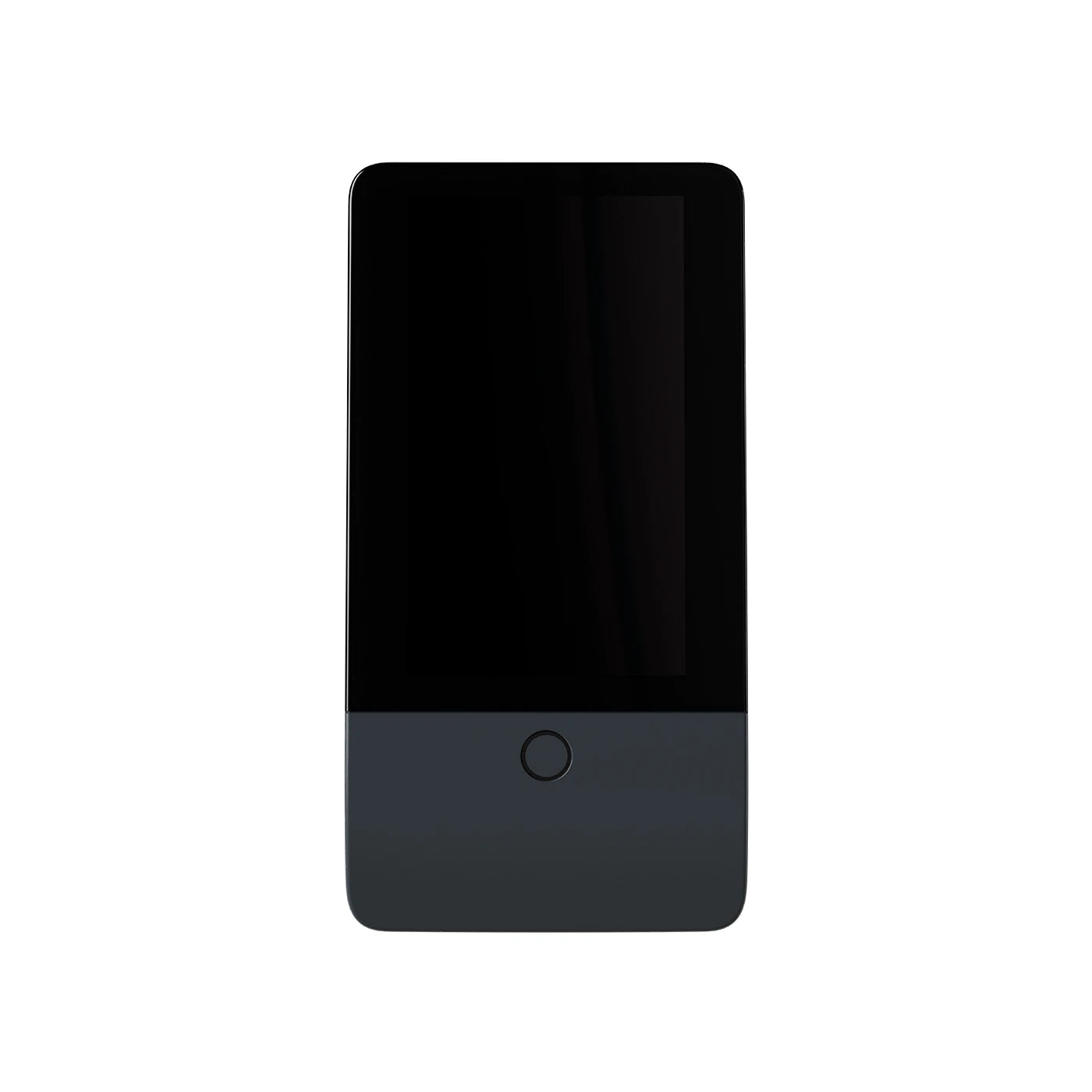

The Jablotron 100+ NATUS JA-156E-AN is a modern wireless touch keypad for the convenient and secure control of compatible JABLOTRON 100+ alarm systems. With its 5-inch touchscreen, integrated RFID reader, and elegant anthracite design, the keypad combines intuitive operation with modern security technology. It is ideally suited for use in residential homes, apartments, offices, medical practices, and other commercial properties.

The clear touchscreen allows for easy control of security system functions and convenient access to important system information. The integrated RFID reader additionally enables quick and user-friendly identification and operation using compatible RFID access media. As a result, the JA-156E-AN offers a modern alternative to classic keypads and expands the options for daily system control.

The wireless touch keypad is designed for use with the JABLOTRON control panels JA-103K and JA-107K. Communication takes place via the JABLOTRON radio protocol at 868.1 MHz. Under optimal conditions, the keypad reaches a communication range of up to 200 meters in open space. This allows the NATUS JA-156E to be flexibly installed in existing buildings without the need for a data cable to the keypad.

An external 12 V DC power supply is required for operation. A suitable power supply unit is mandatory and must be ordered separately. There is also the option to expand the wireless keypad with a 3.7 V 2500 mAh Li-ion polymer battery, which can support device function for more than 48 hours in the event of an external power failure.

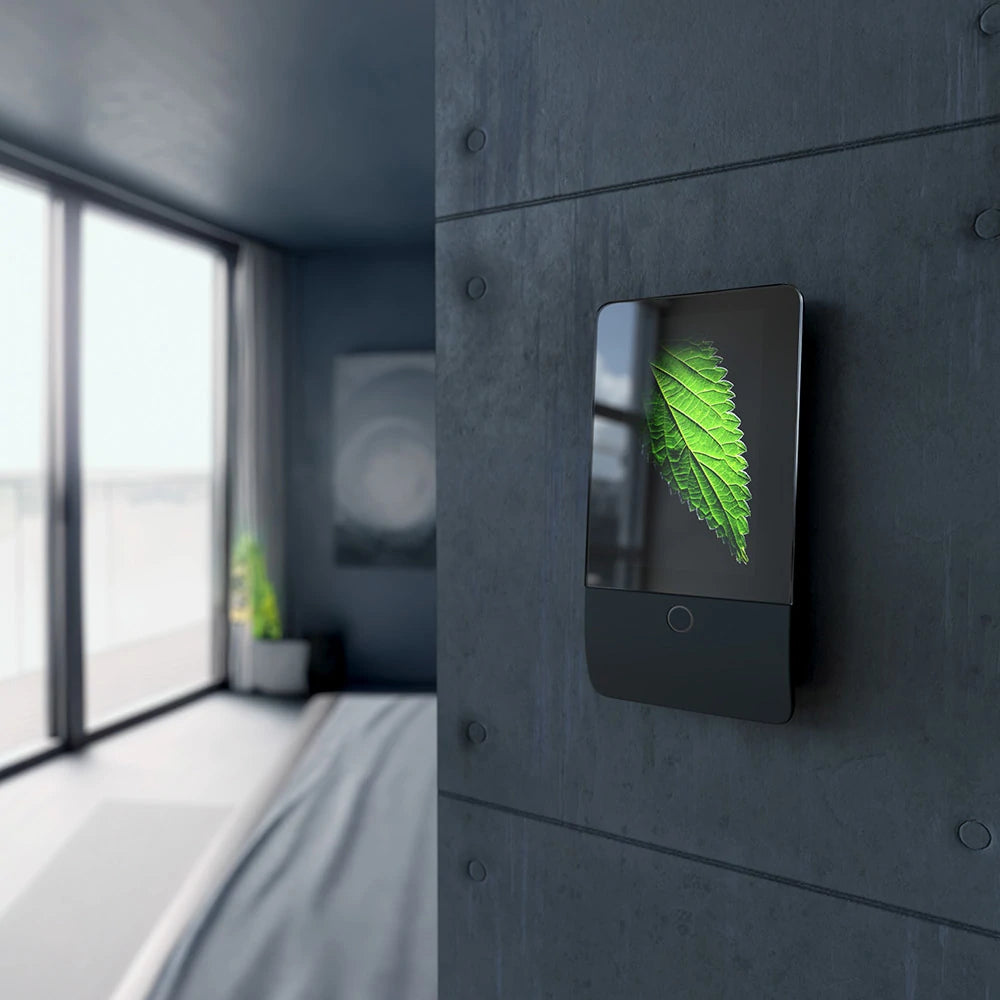

The 5-inch touchscreen ensures modern and intuitive user guidance and simplifies daily operation of the security system. The keypad is particularly suitable for areas where centralized and easily accessible alarm system control is desired, such as in the entrance area of a house, in offices, at reception desks, or in commercial properties.

With its EN Grade 2 certification, the JABLOTRON 100+ NATUS JA-156E meets the requirements for professional security applications. Furthermore, the device complies with relevant European norms and standards, including ETSI EN 300 220-1 and EN 300 220-2, EN 50130-4, and EN IEC 62368-1.
