Description

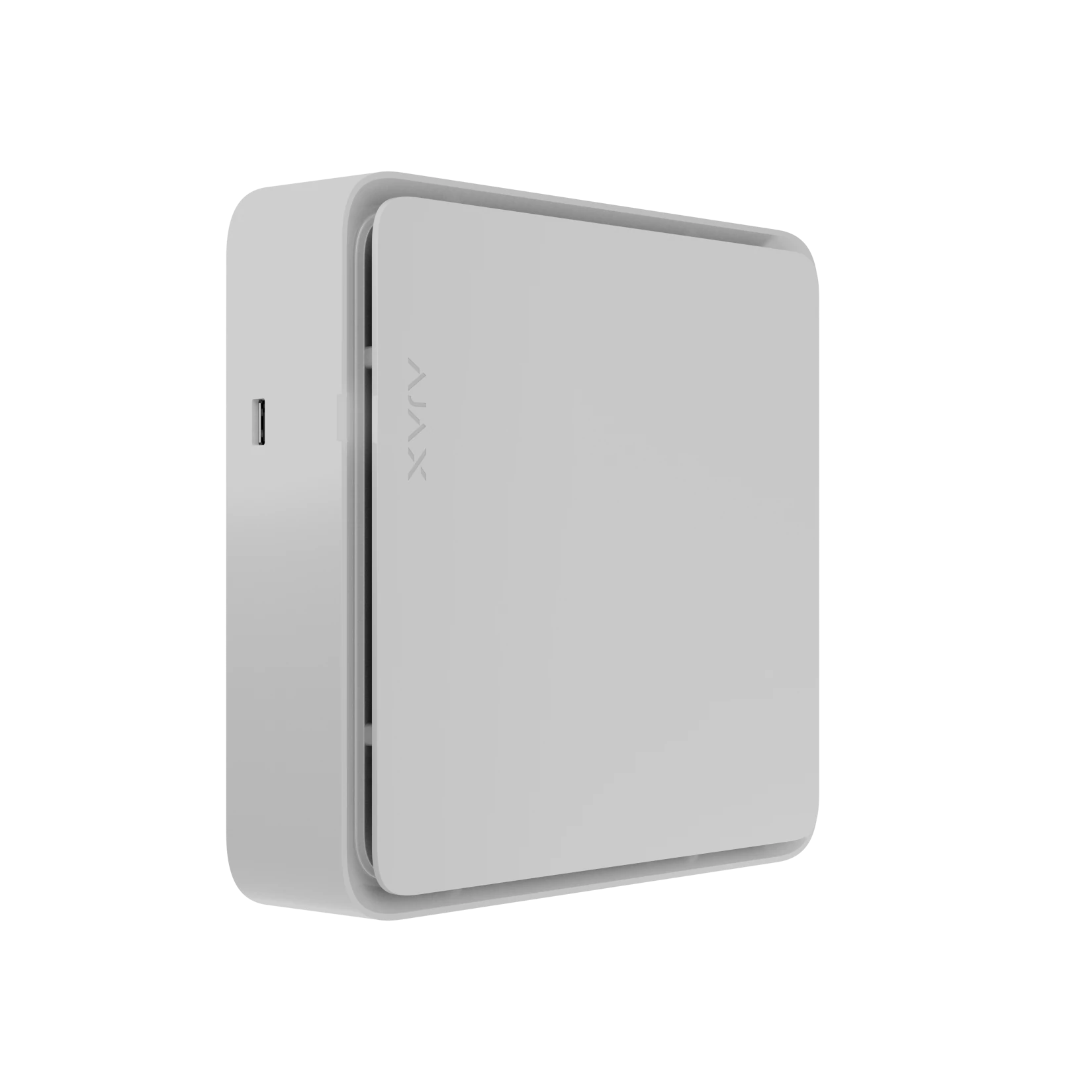

AJAX NVR HAC (8-ch) – 8-Channel Network Video Recorder with HDMI Output for professional video surveillance The AJAX NVR HAC (8-ch) is a high-performance network video recorder (NVR) for modern video surveillance systems. Unlike the previous AJAX NVR series, this model features an integrated HDMI output, allowing live images and recordings to be displayed directly on a monitor or TV – even without access to the Ajax app or an internet connection. This makes the recorder ideal for businesses, ... Read more

AJAX NVR HAC (8-ch) – 8-Channel Network Video Recorder with HDMI Output for professional video surveillance

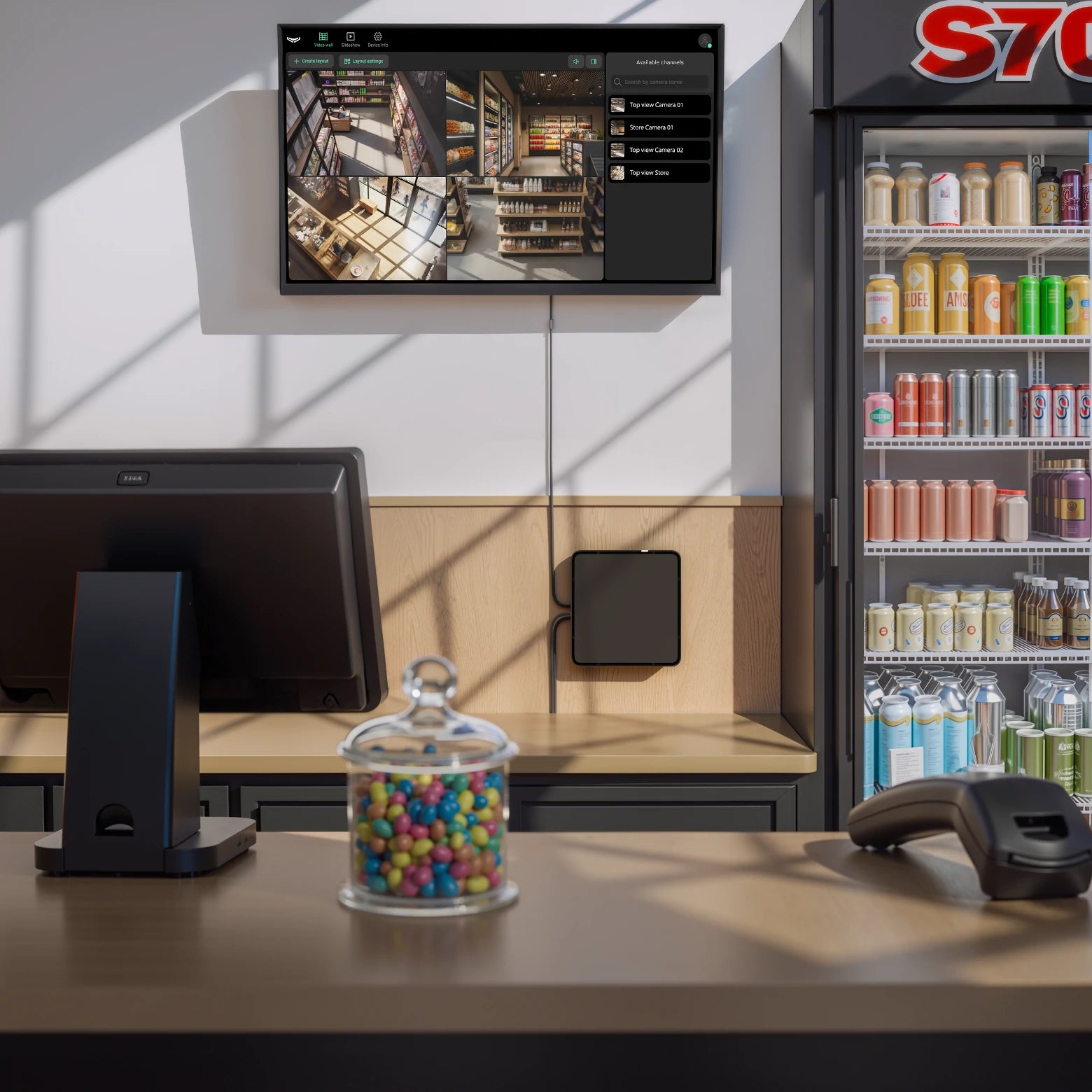

The AJAX NVR HAC (8-ch) is a high-performance network video recorder (NVR) for modern video surveillance systems. Unlike the previous AJAX NVR series, this model features an integrated HDMI output, allowing live images and recordings to be displayed directly on a monitor or TV – even without access to the Ajax app or an internet connection. This makes the recorder ideal for businesses, retail stores, reception areas, warehouses, and private security solutions.

The 8-channel NVR supports both AJAX IP cameras and numerous third-party IP cameras. The requirement is support for the open standards ONVIF or RTSP. This allows for the seamless integration of cameras from many well-known manufacturers, such as Hikvision, Dahua, Uniview, Axis, Bosch, Reolink, and other manufacturers with ONVIF or RTSP support. Cameras can be detected automatically on the network or added manually via IP address, credentials, and stream parameters.

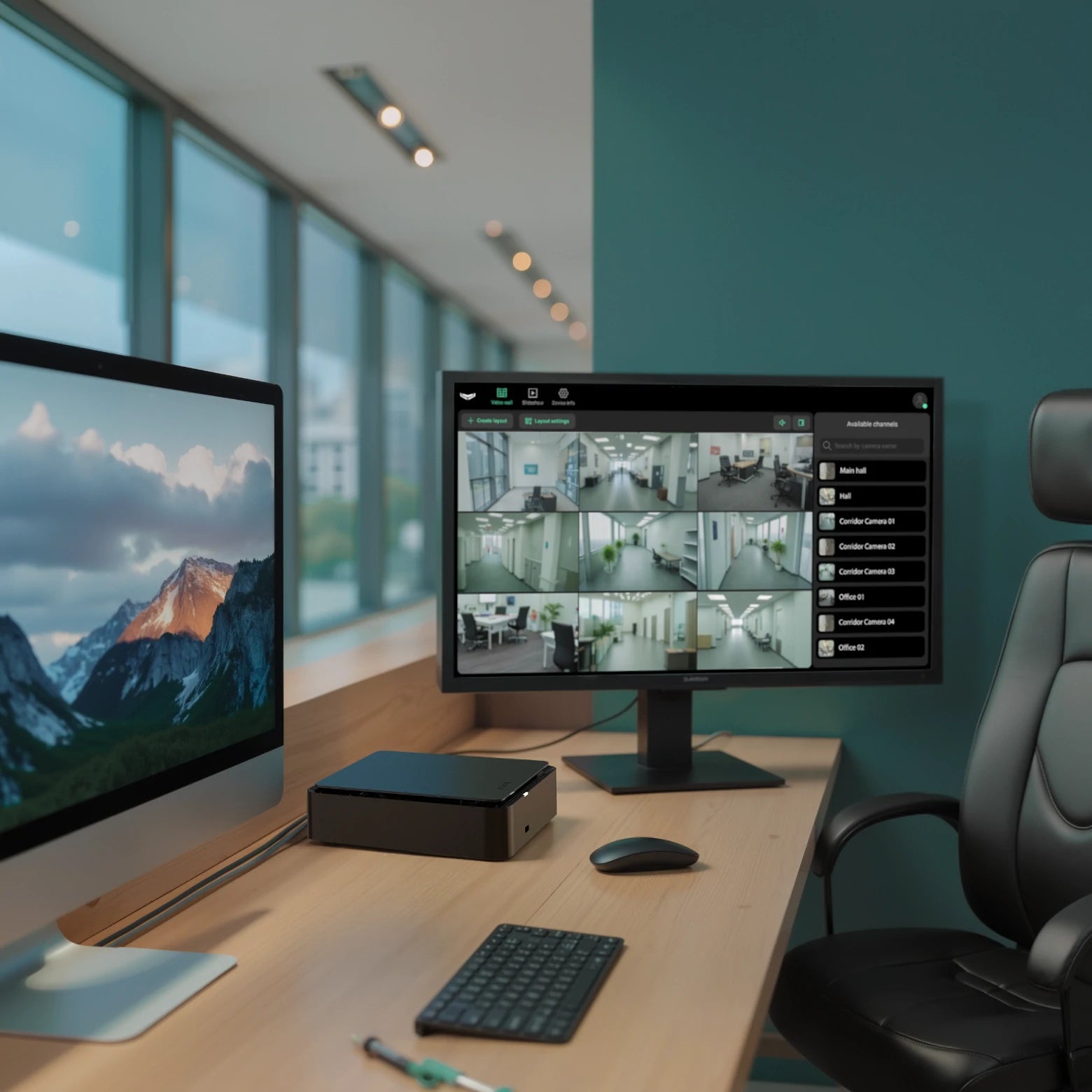

The HDMI output represents the biggest difference compared to the previous AJAX NVR series without HDMI. While earlier models were operated exclusively via Ajax apps or remote access, the NVR HAC (8-ch) enables direct local viewing of all connected cameras on a screen. Additionally, two USB ports are available for a mouse or keyboard, allowing the system to be operated comfortably directly at the device.

The recorder supports hard drives or SSDs with up to 16 TB of storage capacity (not included) and can also be operated without an installed storage medium. In this case, it serves as a central interface for integrating compatible IP cameras into the AJAX security system. The recordings are digitally signed, ensuring their integrity and authenticity can be verified at any time.

Another advantage is the support for the JetSparrow protocol. This video streaming protocol, developed by AJAX, ensures particularly fast connection establishment, low latency, and efficient bandwidth utilization within the AJAX video ecosystem. This allows live images to be transmitted almost without delay and enables smooth playback even with multiple cameras.

*HDD or SSD is not included

Details

Video

Video input: 8 channels
Recording resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
HDMI output resolution: 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720 px
Live view / playback resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF

Decoding

Format: H.265, H.264, JetSparrow
Capabilities:
- 1 × channel at 8MP
- 3 × channels at 5MP
- 4 × channels at 4MP
- 4 × channels at 1080p
- 8 × channels at 720p
- 8 × channels at 1024 × 576 px

The width or height of the camera video resolution (per channel) must not exceed 4096 pixels.

Live view window division:
- Templates: 1, 4, 9, 16, 5+1, 7+1 views
- Custom: up to 10×10 views
Synchronous playback: 8 channels

Intelligent video analytics

Motion detection:
- Ajax camera: 8 channels
- NVR: 8 channels

NVR HAC has integrated software for detecting motion in the image. It is possible to switch between image analysis by NVR HAC or camera algorithms in an Ajax app.

AI object detection:
- Ajax camera: 8 channels

Interface

HDD/SSD
- 1 × SATA: supports one drive with up to 16 TB capacity (2.5″ or 3.5″ form factor)

HDD or SSD is not included.

Network

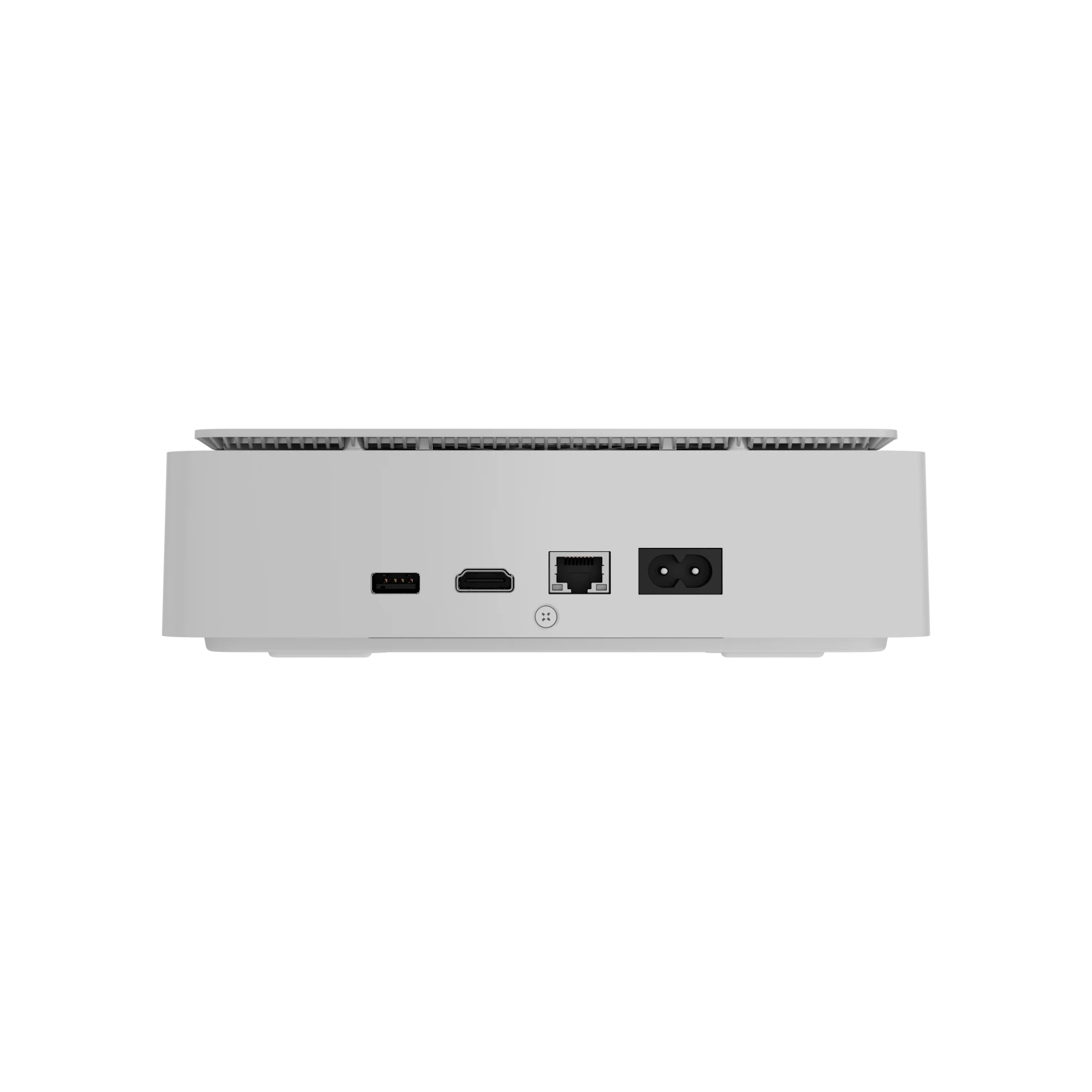

- 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
USB
- Rear panel: 1 × USB 2.0 (Type-A)
- Side panel: 1 × USB 2.0 (Type-A)

For connecting a keyboard, mouse, or USB flash drive.

Network

Bandwidth:
- Incoming: up to 80 Mbps
- Outgoing: up to 40 Mbps

Protocol:

HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS

Interoperability: ONVIF

Key features

Supported devices:
- Ajax cameras
- IP cameras with ONVIF (Profile S/T) or RTSP
Integrated video management system:
- Integrated video wall interface with live camera feeds.
- Intelligent event filters for quick access to relevant recordings.
- Interactive timeline with preview navigation for efficient playback and event review.
Visual verification of Ajax system alarms:

NVR HAC supports a scenario in which events triggered by Ajax detectors automatically highlight the corresponding camera feed on the video wall. This allows for immediate intrusion verification by the operator.

Data privacy

Advanced privacy controls ensure high protection of personal data. The device owner can fully configure all access rights. This also applies to mobile app users, installers, and monitoring company operators who use Ajax PRO Desktop. This ensures that only authorized persons can access video streams, event logs, or device settings, as determined by the owner.

Power supply

Main power supply: 110–240 V, 50/60 Hz, 0.6 A
Power consumption: up to 24 W
Clock battery: CR2032 battery, 3 V

Only for powering the system clock.

Enclosure

Dimensions: 212 × 212 × 64 mm
Weight: 782 g

Excluding drive.

Operating temperature: from 0 °C to +40 °C
Operating humidity: up to 75%
Protection class: IP20

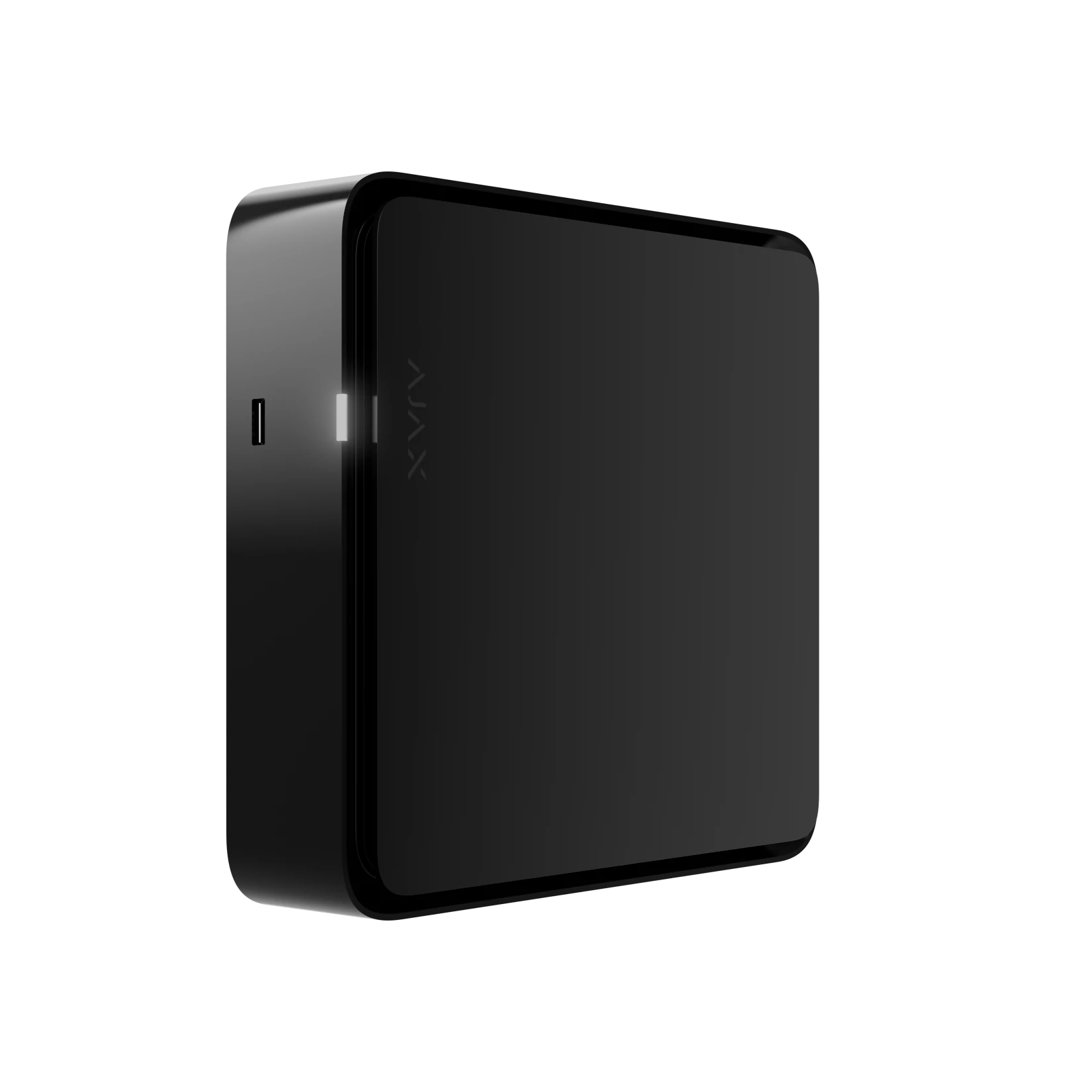

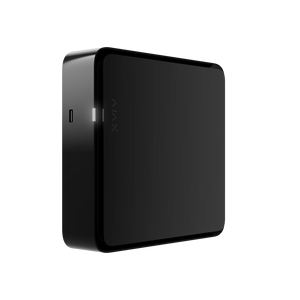

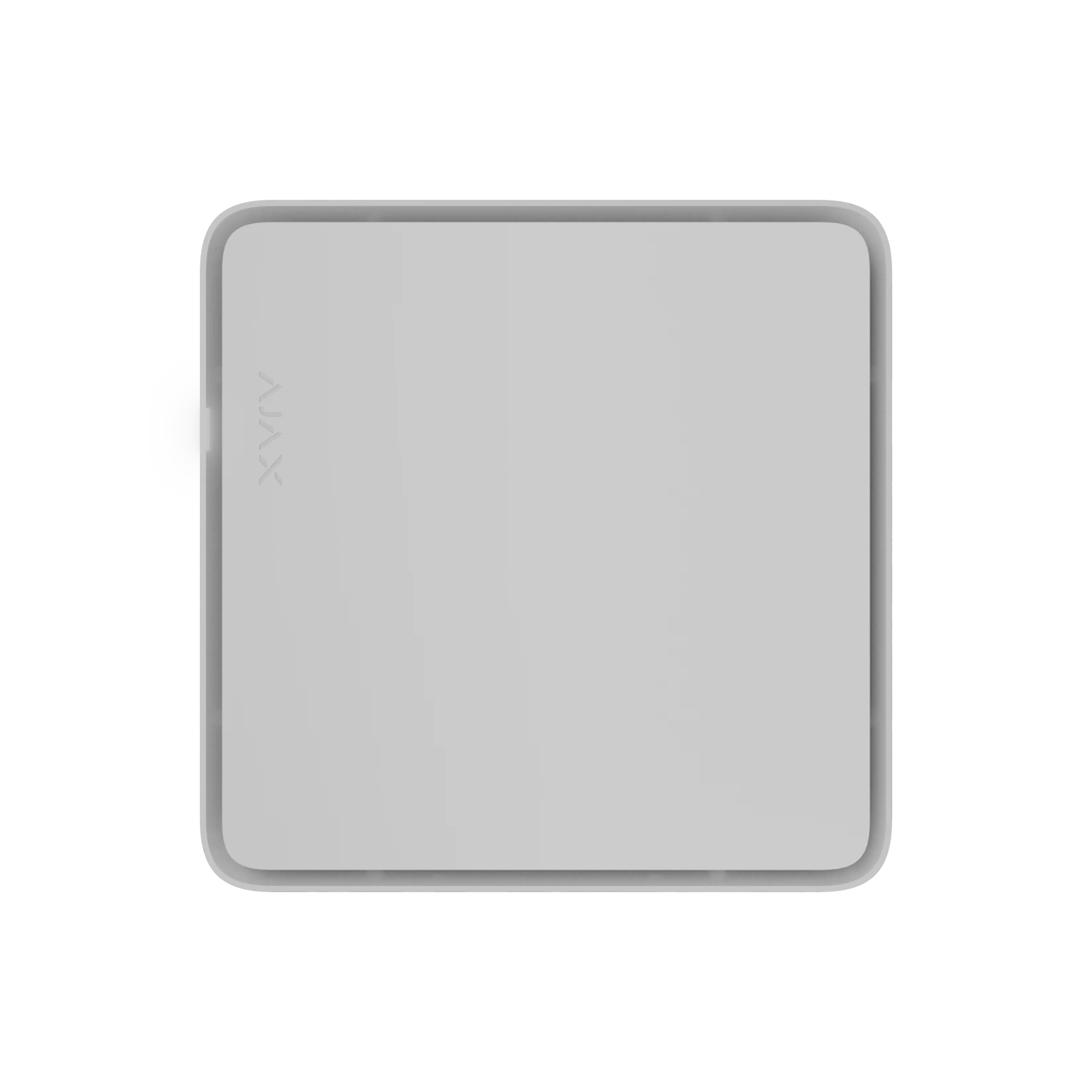

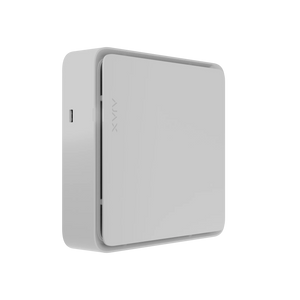

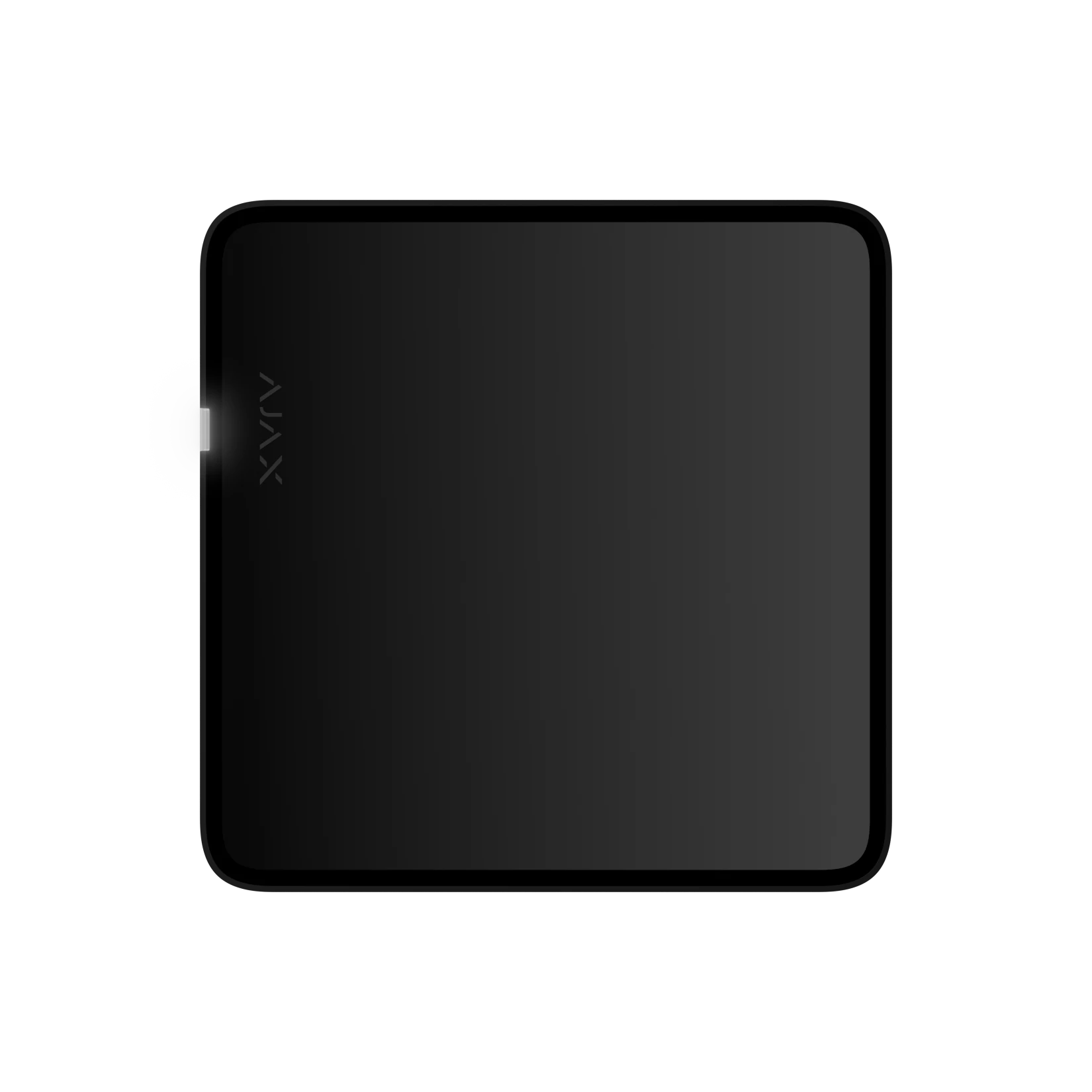

Color: Black, white

Scope of delivery

AJAX NVR HAC (8-ch)
SmartBracket mounting plate
Power cable
Ethernet cable
Installation kit
Quick start guide

Downloads

📄 Bedienungsanleitung

📄 Technisches Datenblatt
